Description

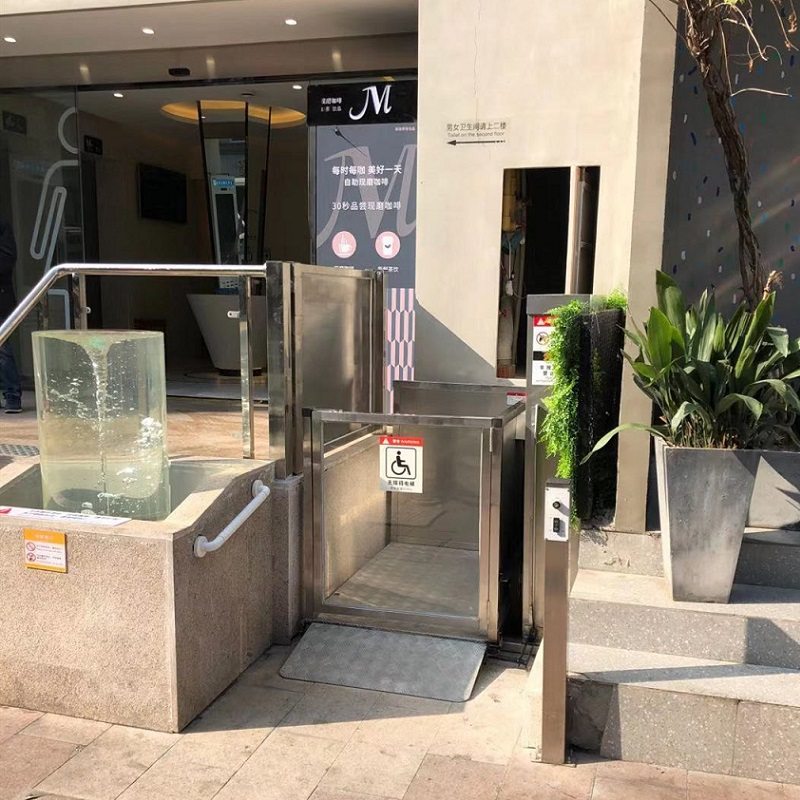

Outdoor hydraulic elevator for handicapped has been widely used in various occasion, indoor and outdoor ,It has made it easier for disabled people to get in and out of public places, up and down the floors and travelling around more easily .

The operating procedures :

(1).the lifting platform has been strictly debugging, arbitrarily adjust the regulator valve, Non-professionals are not allowed to adjust the regulator valve .

(2).Carefully check the hydraulic, electrical system, no leakage or bare phenomenon before use, do not loose all the joints and fasteners before you can use.

(3).Power on, start the motor, empty lift, check the hydraulic system before use.

(4).The center of the load should be as close as possible to the center of the work surface. The moving doors at both ends of the guard railing should be locked before working.

(5).The lifting platform shall work strictly in accordance with its prescribed carrying capacity, and overloading work may result in damage to personnel and equipment.

(6).The lifting platform is strictly prohibited from moving and shaking during the rise and fall.

(7).Any unusual noises during the work should be stopped immediately to avoid injury to personnel or damage to equipment

(8).After the work completed, you should lower the platform, cut off the power supply, and close the legs, pushing the platform into the specified position

Technical parameters：

Power： 220V/50HZ

Outer size :  1768mm×1290mm×L+600 mm

Bottom plate size :  1370mm（Length）×922mm

Max height :  6000mm

Bottom height :  80mm

Installation:  Install it in the floor (concert thickness more than 200mm)

Rising speed :  70mm/s （hydraulic）    40mm/s（screw）

Max load :  250kg
Shield form :  90°or 80°

Board angle： 75°
Drive mode ：Hydraulically driven or precision screw drive

Control power voltage： 24V/DC

Motor power： 1.5kw  220V/AC

Lift control： The warp plate operates from the reset switch operation

Out call： The upper and lower outer call columns are installed in the ground of the stop attachment and operate under the device linkage control platform

Working condition： Indoor and outdoor

Working temperature： -20°C—60°C

The appearance of the device： The exterior decoration or standard model polymer isolation film cover is used for 304 stainless steel pull-up plate.

Safety board： The warp automatically rises when the device is running up, preventing the wheelchair from sliding out of the platform.
Anti-Fall protection:  the main sub-nut relying on transmission, joint control operation anti- fall protection.

Overload protection:  Over-current relay control.
Emergency stop:  Press the emergency press switch to control the rise or fall of the machine

Emergency drop:  Hand shake style operation emergency drop.

Safety net:  When the lifting bottom plate falling, it will stop immediately when the safety net touch barrier
