Vertical Wheelchair Platform Elevator

Home Vertical platform lifts Vertical Wheelchair Platform Elevator

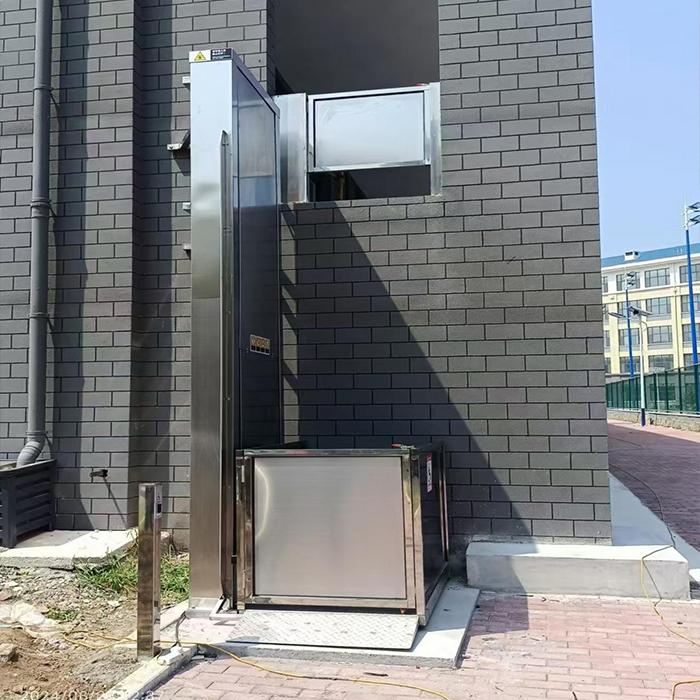

Vertical Wheelchair Platform Elevator

Vertical wheelchair platform elevators are customized products for lifting cargo or wheelchair for disabled people.

Vertical wheelchair platform elevators are suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.

Vertical wheelchair plattform elevators can be used at home or in public places.

Vertical wheelchair platform elevators have been widely used in various occasions, indoors and outdoors.

APLUS vertical wheelchair platform elevators have the  features of  smooth running speed, high safety , easy installation. small space required & no pits required.

Vertical platform lifts, Featured Products Tags: , ,

Description

Vertical wheelchair paltform elevators can be used at home or in public places.

Vertical wheelchair platform elevators have been widely used in various occasions, indoors and outdoors.

APLUS vertical wheelchair platform elevators provide the best architectural choice for commercial applications such as schools, churches and office buildings.

APLUS vertical wheelchair platform elevators have the  features of  smooth running speed, high safety , easy installation. small space required & no pits required.



Features of  APLUS vertical wheelchair platform elevators:

Product name
Wheelchair lift/Home elevator
Platform Size

1650mm(L)* 1100mm(W) or Customized

The minimum height of the lifting base plate
60mm
Maximum Lifting Height
9M(Customized)
Entry & Exit Mode
0°/90°/180°
Lifting Speed
60mm/s—Adjustable
Load Capacity
300KG
Control Source
220V or Customized
Motor Power
1.1KW
Power Supply
220V/50HZ or Customized
Drive System
Hydraulic driven
Running Mode
Jogging control or setted lifting range
Installation Mode
No pit, installed to the concrete ground directly
Extron Control Device:
The panel boxes are placed next to the entrance on the above/below floor
