Description

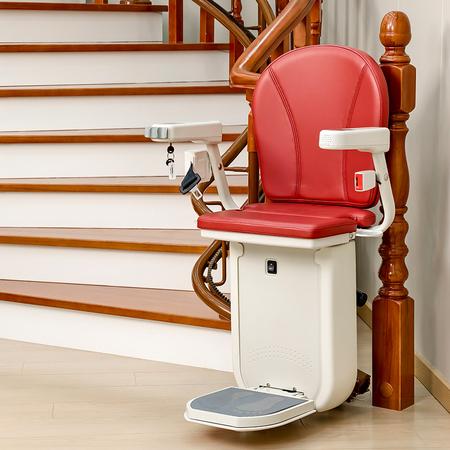

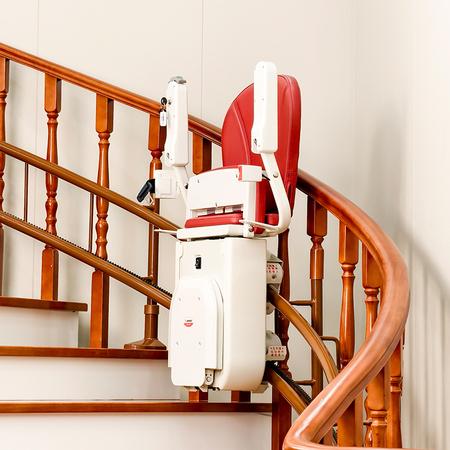

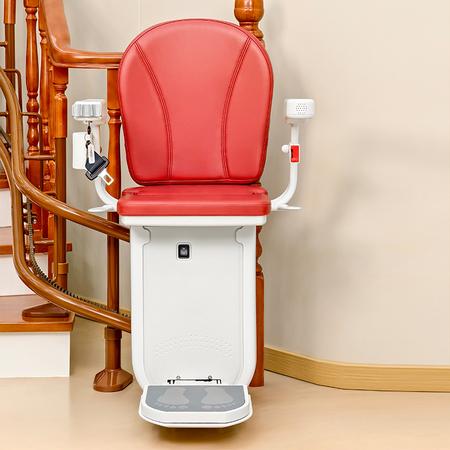

The Curved stairlifts adopts high-strength chrome steel double tube track, which is safe, stable and durable. Various trapezoidal structures can be installed, with gear meshing and rack transmission, motor drive, 24V safety circuit, and automatic speed control turning. The product is widely used in self built houses, villas, duplex buildings, elderly care and rehabilitation centers, hospitals, schools, restaurants and other business places.

1. 15th floor safety protection device

（1） Machine key switch
（2）Electronic self-locking seat belt
（3）Sensitive safety sensing device
（4）Self locking structure of gearbox
（5）Power off electromagnetic brake
（6）Controller protection program
（7）Over speed protection system
（8）Mechanical overspeed protection
（9）Overheating protection
（10）Frost protection
（11）Low voltage protection
（12）Low power escort

2.Design standard for track rack and pinion

The track adopts a high-strength chrome steel double tube design, with a static load-bearing capacity of up to 1.5 tons and a dynamic operating load-bearing capacity of over 300 kilograms, which is stable and durable. The outer diameter of the track has been upgraded to 38mm (market track outer diameter 42mm), and the turning outer diameter is only 438mm (market turning outer diameter 538mm), occupying less space and more beautiful appearance; The tooth width of the rack is 10mm (market tooth width 6mm), with a larger meshing contact surface, more stable, smooth, and wear-resistant, all designed higher than national and industry standards.

3. High efficiency and low-noise motor

The power traction adopts a 35mm large shaft diameter motor (market motor shaft diameter 30mm), with a current of only 15-16A at full load (market full load current 25-26A). The controller does not generate heat, the motor is more durable, and the equipment is more durable, sturdy, and efficient. Laboratory testing shows an average noise level of 45-50 decibels during operation, with relative quietness.

4.Strong load-bearing capacity

Adopting high-strength chrome steel double tube track, the standard version has a load capacity of 120 kilograms, the heavy-duty version has a load capacity of 160 kilograms, and the internal test limit load has reached over 300 kilograms.

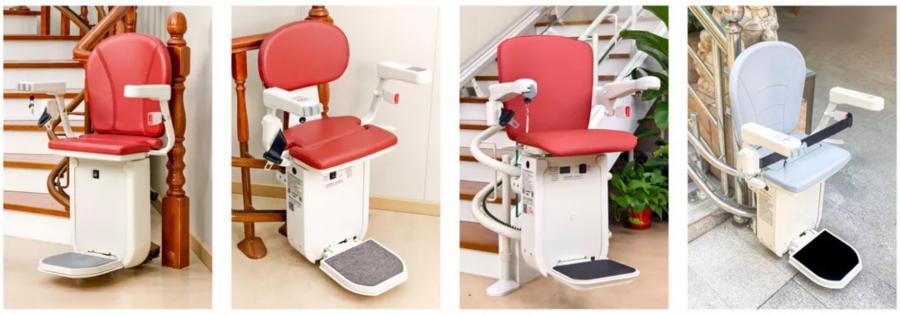

5. Multiple series for you to choose from

The leather style is high-end and more textured, while the PU style is dirt resistant and suitable for use in public areas. If you are in an outdoor environment, there are also outdoor styles (waterproof) that can meet your needs.
