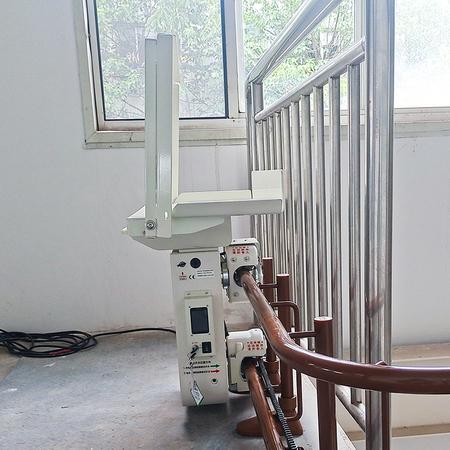

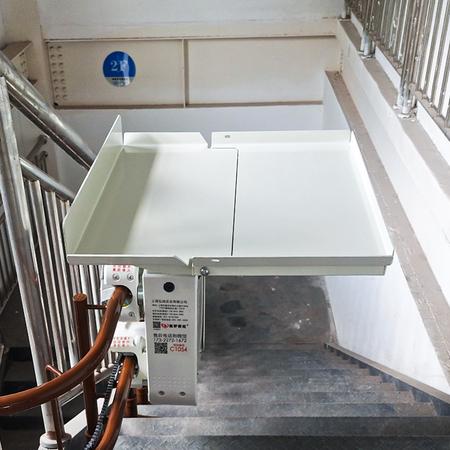

Cargo Stairlifts are stair lift platforms used for cargo transportation. They adopt a foldable box structure and can be installed with a corridor width of 64cm or more after folding. The safety protection system consists of 6 floors inside and outside, which can meet the needs of transporting goods up and down stairs.

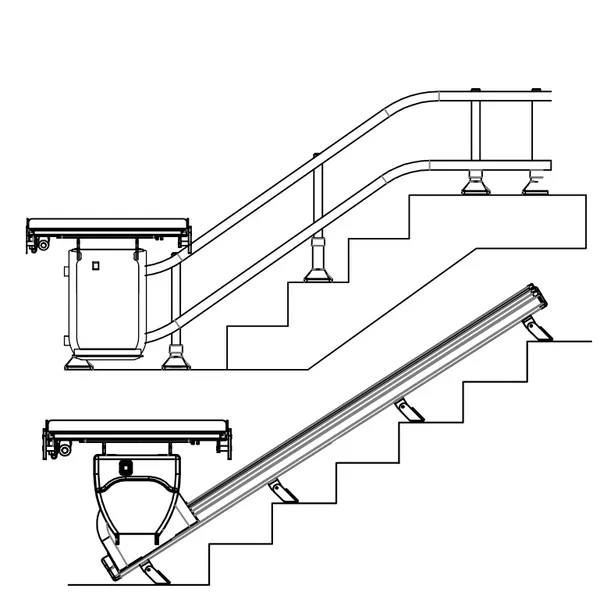

The cargo Stairlifts adopts a foldable box structure, which can be installed with a corridor width of 64cm or more after folding, and can be installed in any trapezoid shape. It can automatically turn and is suitable for manufacturing factories, banks, fitness clubs, restaurants and other business places.
Advantages and Characteristics：
1. 6-layer security protection system
(1) Remote diagnosis
(2) Signal reception
(3) Fault code
(4) Rack tooth width 10mm
(5) 12V、12AH large capacity recyclable lead-acid battery
(6) Foundation design with 5 holes for fixed positioning
2. High strength aluminum alloy
The 3mm steel pipe double tube track support column is vertically fixed to the step, ensuring safety and stability.
3. Design standard for track rack and pinion
The tooth width of the gear rack is 10mm, and the meshing degree of the gear rack is higher, smoother and more stable. The foundation is designed with 5 holes for fixed positioning, and the standard is to use three holes for embedding. The first and second holes are used as backup holes, and in special cases, other holes can be fixed to avoid pre embedded facilities such as wires and water pipes. The plan is comprehensive and worry free.
4. High efficiency and low-noise motor
The motor shaft diameter is 35mm, which is more efficient and stable. The full load current is 15A-16A, with low energy consumption, environmental friendliness, and low noise.
